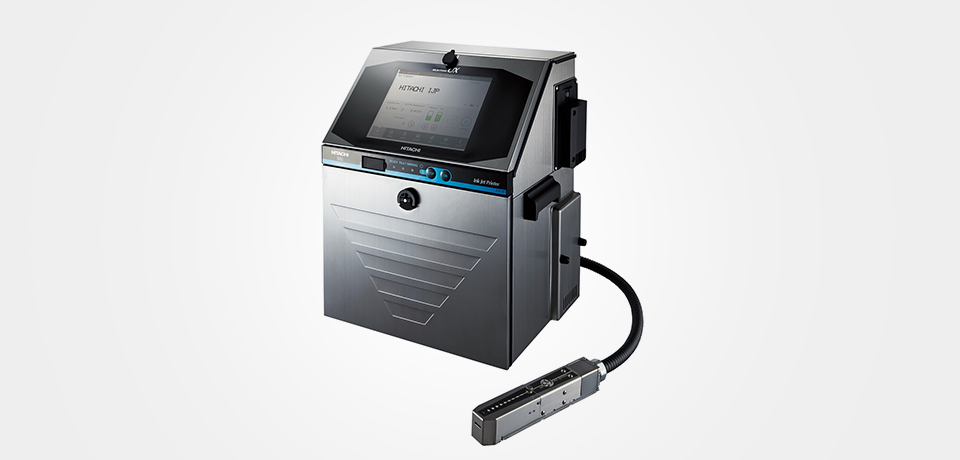

Hitachi UX-D150W High Speed Inkjet Printer
Designed for high speed and high quality print applications. With advanced viscosity control to achieve highest printing quality in nearly all environments. To keep the printing costs low, the ink and makeup consumption are minimized. Low cost of ownership, reliability and efficiency have now been combined with the highest demands in terms of speed.
Features :-
- For high speed and high quality applications
- Higher printing flexibility without decreasing the production capacity
- Advanced viscosity control to achieve highest printing quality
- Reduced printing costs by minimized ink and makeup consumption.
| Nozzle size | 55 µm |
| Max.print line number | Up to 4 lines |
| Maximum number of print characters | Up to 1,000 characters |
| Font(Horizontal × vertical) | 4x5 5x5 5x7(8), 9x7(8) 7x10 12x16 18x24 *2 |
| Character | 2-8 mm |
| height | |
| Display & input device | WYSIWYG design; display: TFT LCD (10.4" color), backlight provided; input device: Touch panel, input sound provided |
| Screen language(2 languages selectable) | English, Chinese, Korean, Thai, Vietnamese, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian, Slovenian |
| Maximum print rate (characters per second) (Font 5 x 5, space 1,1 line) | Up to 3,173 |
| Standard characters | Alphanumeric (A-Z, a-z, 0-9), symbols (27), space: total 90 |
| User pattern | 200 patterns each for dot matrix |
| Print function | Calendar, Counter, Font mixture, Password |
| Barcode printing | code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E code128 / EAN-128, GS-1 DataBar |
| 2D code printing | Data Matrix (Alphabet: 49 characters / Numerals: 98 characters), QR, Micro QR code |
| Message storage capacity | 300 Messages (Option: Up to 2000 messages (depends on data content)) |
| Input signal | Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing, Remote control (Run, Stop, High-voltage ON / OFF, Reset), (NPN / PNP Selectable) |
| Output signal | Print in progress or Print complete, Online (NPN / PNP Selectable), Print ready, Fault, Warning (NPN only). |
| Data interface | RS-232C at baud rates selectable up to 115.2 kbps |
