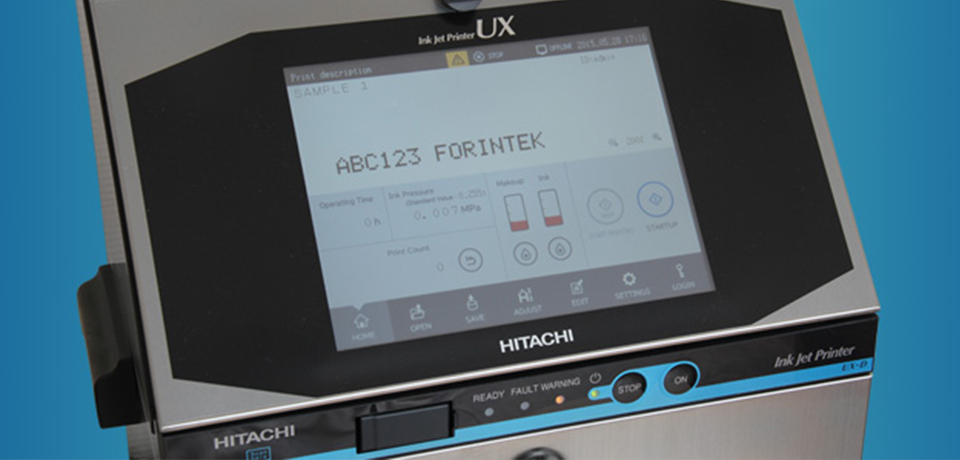

UX Series - Hitachi UX-D140W Micro Characters Inkjet Printer.
The Ux-D140W Micro Character printer is ideal for micro print applications where readability is adverse & the print space is restricted. These model is suitable for small markings on small components such as electric and electronic fields.

Enhanced micro printing capabilities achieve high-resolution quality printing as small as 1 mm in height with speed. The 40 micron nozzle enables to print at high speeds on limited space without comprising line productivity.

Features :-

  • Easy and quick operation by large 10.4” Color TFT LCD touch panel.
  • Advanced drop control system to ensure stable printing quality in all environmental conditions.
  • Unique ink return system to reduce solvent evaporation, which minimizes the mixing of air and ink.
  • IP65 enclosure.
  • Printing on products with extremely small marking areas is possible.
  • These models are suitable for printing on small components, wire etc. in the electric and electronic fields.
Nozzle size 40 µm
Max.print line number Up to 4 lines
Maximum number of print characters Up to 1,000 characters
Font 4x5
Font(Horizontal × vertical) 4x5
5x5
5x7(8), 9x7(8)
7x10
12x16
18x24
24x32
Character 1-5 mm
height
Display & input device WYSIWYG design; display: TFT LCD (10.4" color), backlight provided; input device: Touch panel, input sound provided
Screen language(2 languages selectable) English, Chinese, Korean, Thai, Vietnamese, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian, Slovenian
Maximum print rate (characters per second) (Font 5 x 5, space 1,1 line) Up to 3,030
Standard characters Alphanumeric (A-Z, a-z, 0-9), symbols (27), space: total 90
User pattern 200 patterns each for dot matrix
Print function Calendar, Counter, Font mixture, Password
Barcode printing code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E code128 / EAN-128, GS-1 DataBar
2D code printing Data Matrix (Alphabet: 49 characters / Numerals: 98 characters), QR, Micro QR code
Message storage capacity 300 Messages (Option: Up to 2000 messages (depends on data content))
Input signal Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing, Remote control (Run, Stop, High-voltage ON / OFF, Reset), (NPN / PNP Selectable)
Output signal Print in progress or Print complete, Online (NPN / PNP Selectable), Print ready, Fault, Warning (NPN only).
Data interface RS-232C at baud rates selectable up to 115.2 kbps
