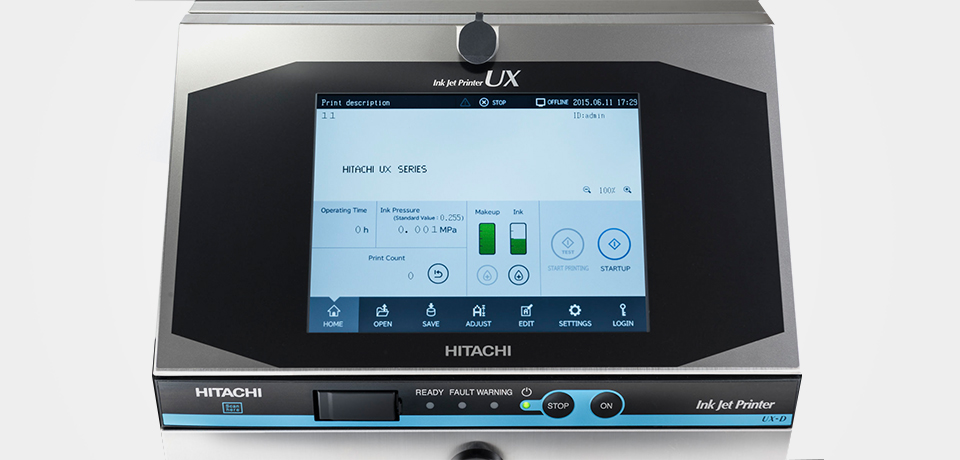

UX Series - Hitachi UX-P160W /S Pigment Ink CIJ Printer.
The UX-P model is designed for high contrast marking on dark surfaces with pigmented inks at the highest quality. Typical application areas include automotive parts, cables, plastic piping and electronic components.
Features :-
- High contrast on dark surfaces.
- Up to 6-line-printing.
- Intuitive Print Control.
- Worry-free integration.
- Simple Fluid Management.
| Nozzle size | 65 µm |
| Max.print line number | Up to 6 lines |
| Maximum number of print characters | Up to 1000 characters |
| Font(Horizontal × vertical) | 4x5 5x5 5x7(8), 9x7(8) 7x10 11x11(Chinese only) 10x12 12x16 18x24 24x32 30x40 36x48 |
| Character | 2-10 mm |
| Display & input device | WYSIWYG design; display: TFT LCD (10.4" color), backlight provided; input device: Touch panel, input sound provided |
| Screen language(2 languages selectable) | English, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian, Slovenian, Thai, Vietnamese, Chinese, Korean |
| Maximum print rate (characters per second) (Font 5 x 5, space 1,1 line) | Up to 2,296 |
| Standard characters | Alphanumeric (A-Z, a-z, 0-9), symbols (27), space: total 90 |
| User pattern | 200 patterns each for dot matrix |
| Print function | Calendar, Counter, Font mixture, Password |
| Barcode printing | code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E code128 / EAN-128, GS-1 DataBar |
| 2D code printing | Data Matrix (Alphabet: 49 characters / Numerals: 98 characters), QR, Micro QR code |
| Message storage capacity | 2000 Messages (depends on data content) |
| Input signal | Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing, Remote control (Run, Stop, High-voltage ON / OFF, Reset), (NPN / PNP Selectable) |
| Output signal | Print in progress or Print complete, Online (NPN / PNP Selectable), Print ready, Fault, Warning (NPN only) |
| Data interface | RS-232C at baud rates selectable up to 115.2 kbps |
