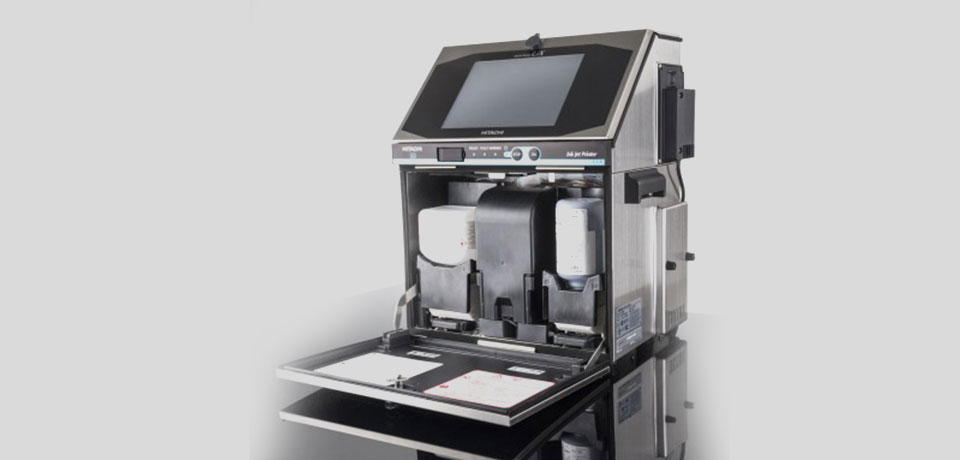

UX Series - Hitachi UX-B160WG Continuous Inkjet Printer.
The Basic model offers up to 240 printable characters on 3 separate lines and a print rate of up 1148 per second. The model comes with a basic message storage capacity, as well as. Through its "Clean & Easy Cartridge System" and its "Makeup Fluid Consumption Reducing System" maintainability and environmental performance can be improved.

Features :-

  • Clean & Easy Cartridge System.
  • Significant reduction of makeup consumption.
  • 3-line printing.
  • Up to 120 print characters.
  • IP 55 protection.
Nozzle size 65 µm
Max.print line number Up to 3 lines
Maximum number of print characters Up to 240 characters
Font 4x5
Font(Horizontal × vertical) 4x5
5x5
5x7(8), 9x7(8)
7x10
12x16
18x24
Character 2-10 mm
Display & input device WYSIWYG design; display: TFT LCD (10.4" color), backlight provided; input device: Touch panel, input sound provided
Screen language(2 languages selectable) English, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian, Slovenian, Thai, Vietnamese, Chinese, Korean
Maximum print rate (characters per second) (Font 5 x 5, space 1,1 line) Up to 1,148
Standard characters Alphanumeric (A-Z, a-z, 0-9), symbols (27), space: total 90
User pattern 50 patterns each for dot matrix
Print function Calendar, Counter, Font mixture, Password
Message storage capacity 150 Messages
Input signal Print target detection, Printing stop, Rotary encoder pulse (NPN / PNP Selectable)
Output signal Print ready, Fault, Warning (NPN only).
Data interface Option (RS-232C at baud rates selectable up to 115.2 kbps
