UX Series - Hitachi UX-D110W Larger Small –size Characters Inkjet Printer

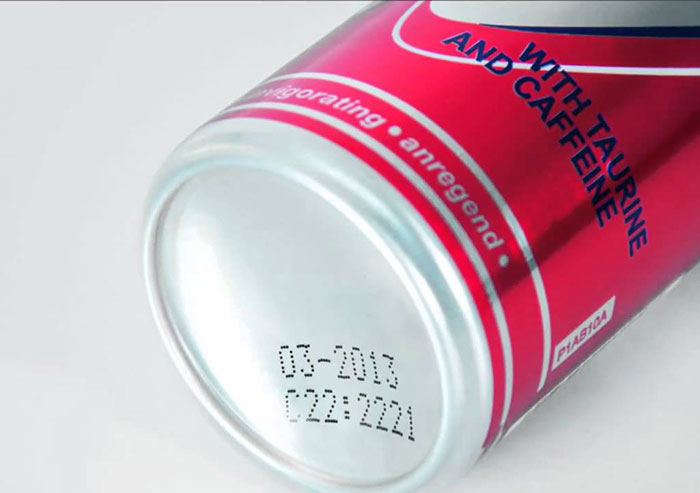

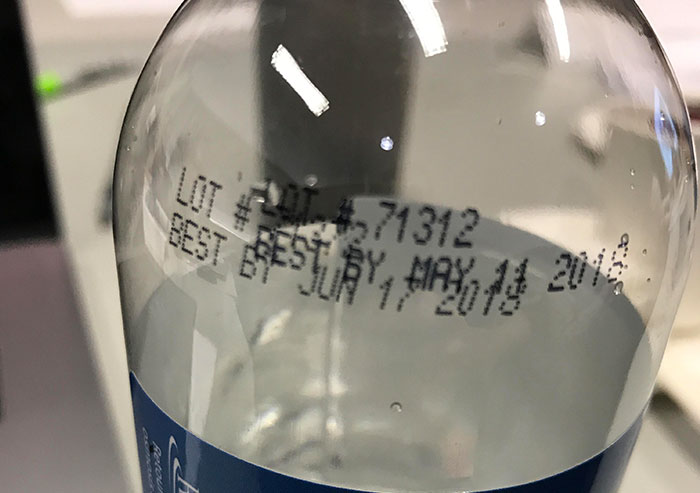

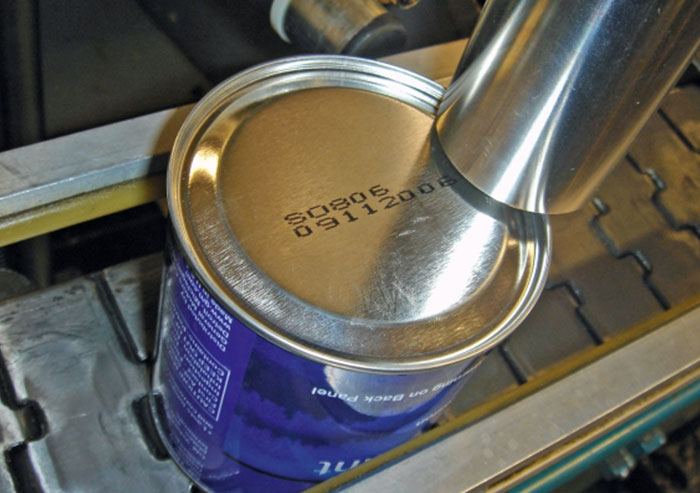

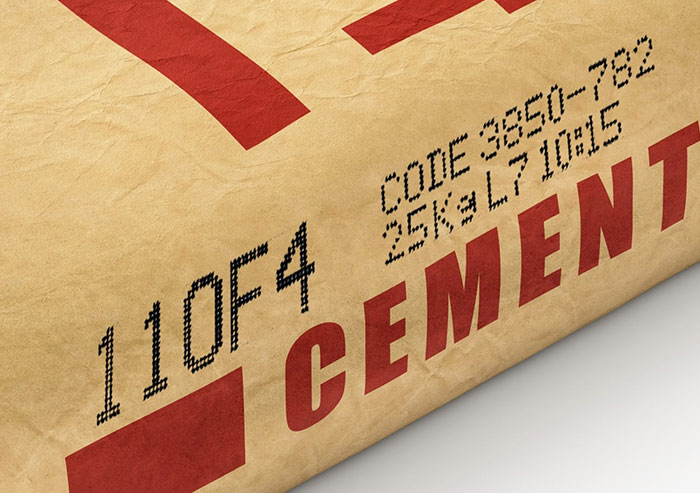

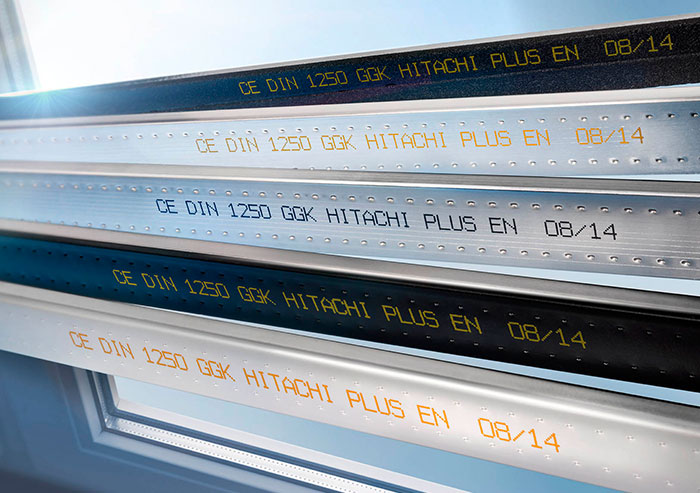

The Ux-D110W is a Larger Small –size Characters inkjet printer that offers flexibility & maximum reliability.With a print height of up to 15 mm, it is ideal for printing all data such as production date, best before date, logo, 2D, QR and standard barcodes, text counter and so on. The printer is controlled through a compact touch screen and is simple to set up & install.

Features :-

  • Easy and quick operation by large 10.4” Color TFT LCD touch panel.
  • Advanced drop control system to ensure stable printing quality in all environmental conditions.
  • Unique ink return system to reduce solvent evaporation, which minimizes the mixing of air and ink.
  • IP65 enclosure.
  • Printing on products with extremely small marking areas is possible.

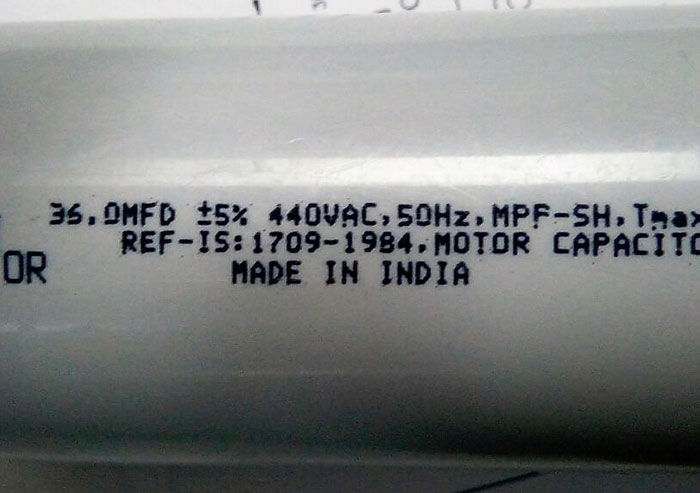

  • These models are suitable for printing on small components, wire etc. in the electric and electronic fields..
Nozzle size 100 µm
Max.print line number Up to 4 lines
Maximum number of print characters Up to 1,000 characters
Font(Horizontal × vertical) 4x5
5x5
5x7(8), 9x7(8)
7x10
12x16
18x24
24x32
Character 3-15 mm
height
Display & input device WYSIWYG design; display: TFT LCD (10.4" color), backlight provided; input device: Touch panel, input sound provided
Screen language(2 languages selectable) English, Chinese, Korean, Thai, Vietnamese, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian, Slovenian
Maximum print rate (characters per second) (Font 5 x 5, space 1,1 line) Up to 468
Standard characters Alphanumeric (A-Z, a-z, 0-9), symbols (27), space: total 90
User pattern 200 patterns each for dot matrix
Print function Calendar, Counter, Font mixture, Password
Barcode printing code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E code128 / EAN-128, GS-1 DataBar
2D code printing Data Matrix (Alphabet: 49 characters / Numerals: 98 characters), QR, Micro QR code
Message storage capacity 300 Messages (Option: Up to 2000 messages (depends on data content))
Input signal Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing, Remote control (Run, Stop, High-voltage ON / OFF, Reset), (NPN / PNP Selectable)
Output signal Print in progress or Print complete, Online (NPN / PNP Selectable), Print ready, Fault, Warning (NPN only).
Data interface RS-232C at baud rates selectable up to 115.2 kbps
