UX Series - Hitachi UX-D160WG Continuous Inkjet Printer.
The Standard model offers 6 separate printing lines for prints up to 240 characters and a print rate of 1148 characters per second, a large message storage capacity, as well as IP 65 protection. The printer is capable of printing barcodes, Data Matrix and QR codes and comes with a full colour 10.4" TFT LCD touchscreen and simple WYSIWYG interface. Through its "Clean & Easy Cartridge System" and its "Makeup Fluid Consumption Reducing System" maintainability and environmental performance improve dramatically.

Features :-

Clean & Easy Cartridge System.
Significant reduction of makeup consumption.
6-line printing.
Up to 240 print characters(Option: Up to 1000 characters).
Up to 1148 characters per second(Option: Up to 2296).
IP 65 protection.

Nozzle size	65 µm
Max.print line number	Up to 6 lines
Maximum number of print characters	Up to 240 characters (Option: Up to 1000 characters)
Font(Horizontal × vertical)	4x5 5x5 5x7(8), 9x7(8) 7x10 11x11(Chinese only) 10x12 12x16 18x24 24x32 30x40 36x48
Character	2-10 mm

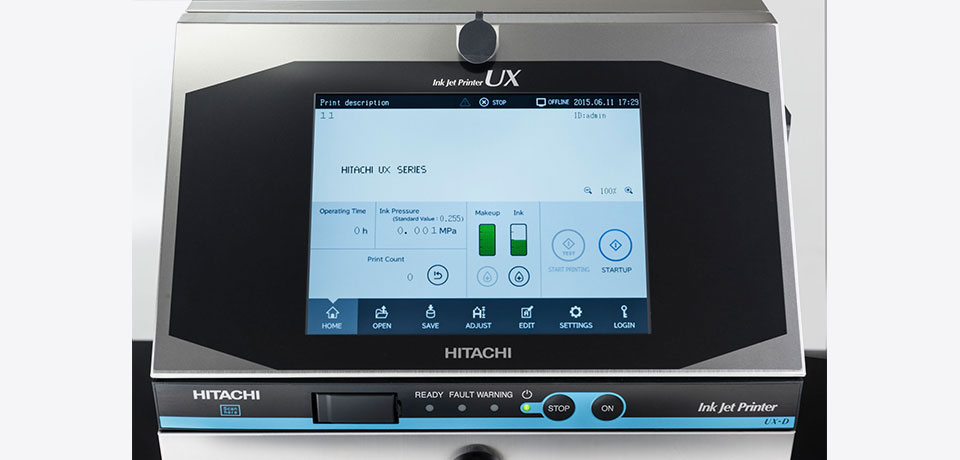

Display & input device	WYSIWYG design; display: TFT LCD (10.4" color), backlight provided; input device: Touch panel, input sound provided
Screen language(2 languages selectable)	English, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian, Slovenian, Thai, Vietnamese, Chinese, Korean
Maximum print rate (characters per second) (Font 5 x 5, space 1,1 line)	Up to 1148 (Option: Up to 2296)
Standard characters	Alphanumeric (A-Z, a-z, 0-9), symbols (27), space: total 90
User pattern	200 patterns each for dot matrix
Print function	Calendar, Counter, Font mixture, Password
Barcode printing	code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E code128 / EAN-128, GS-1 DataBar
2D code printing	Data Matrix (Alphabet: 49 characters / Numerals: 98 characters), QR, Micro QR code
Message storage capacity	300 Messages (depends on data content)
Input signal	Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing, Remote control (Run, Stop, High-voltage ON / OFF, Reset), (NPN / PNP Selectable)
Output signal	Print in progress or Print complete, Online (NPN / PNP Selectable), Print ready, Fault, Warning (NPN only)
Data interface	RS-232C at baud rates selectable up to 115.2 kbps
